Flagship — SCK-55
Double-Sided Outdoor Smart Kiosk

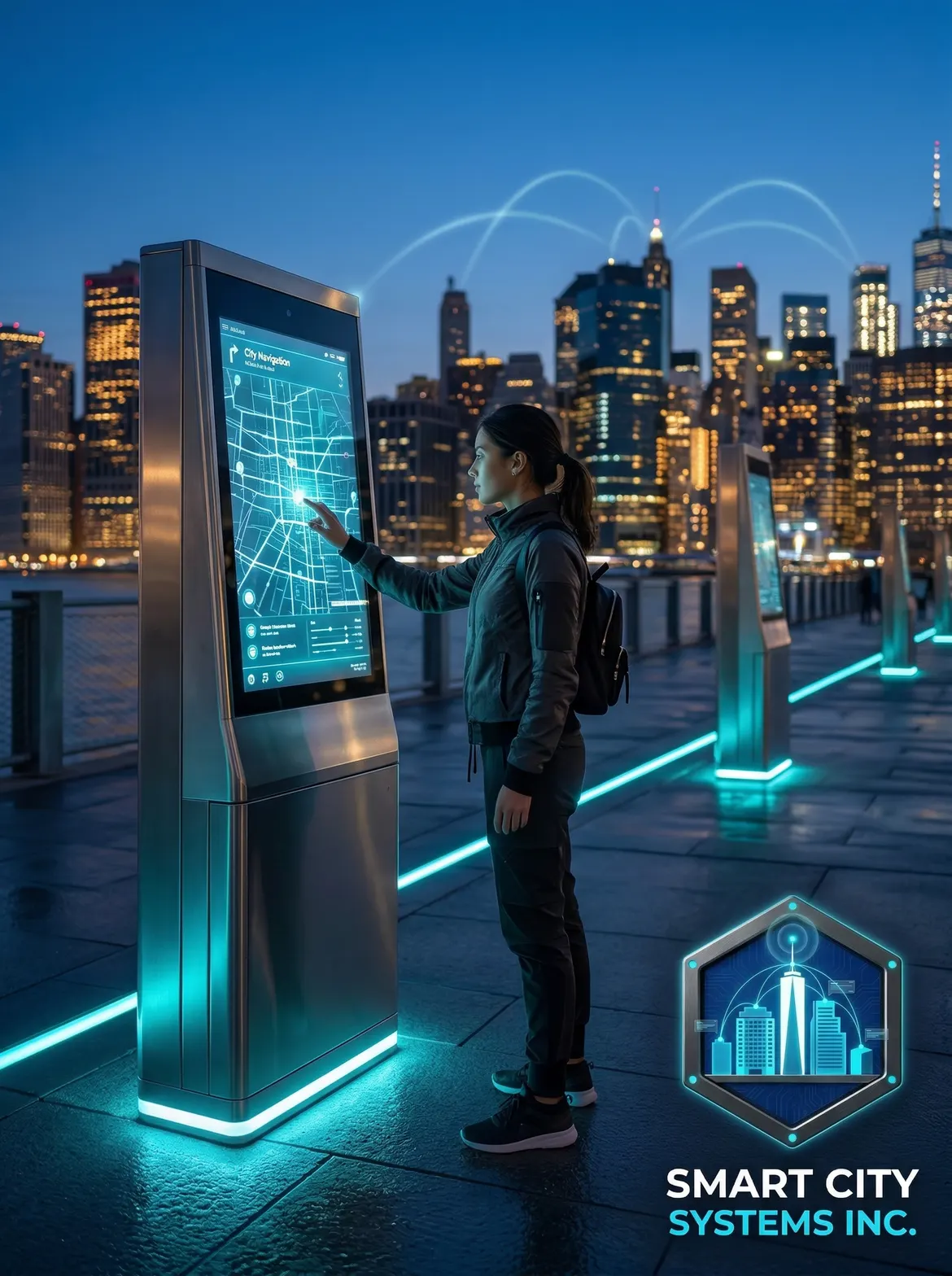

Two 55" 4K UHD sunlight-readable displays back to back in an IP65 weatherproof, IK10 vandal-resistant galvanized steel enclosure. Built for streetscapes, plazas, and transit corridors, and managed end to end by SmartOS.
| Technical Specifications | |
|---|---|
| Displays | Dual 55" 4K UHD LCD, one per side, capacitive touch per face |
| Brightness | 2,500 cd/m² sunlight-readable · 1300:1 contrast · 178° viewing angle |
| Enclosure | IP65 weatherproof · IK10 vandal resistant · galvanized steel, anti-wear powder coat |
| Glass | 6mm high-penetration tempered glass, polarized |
| Compute | Intel Core i7, custom integrated · runs SmartOS v3.0 |
| Climate | Centrifugal fans + built-in air conditioner · -5°C to +50°C operating range |
| Connectivity | WiFi · Ethernet · HDMI input · optional 4G LTE |
| Audio | 2 × 10W waterproof speakers |
| Power | AC 230–240V · 500–700W · under 10W standby |
| Longevity | 50,000+ hour backlight life · 8ms response |
| Control | RS232 · TCP/IP · CMS cloud control · multi-language OSD |
| Compliance | ADA compliant |
| Warranty | 3-year parts + labor |

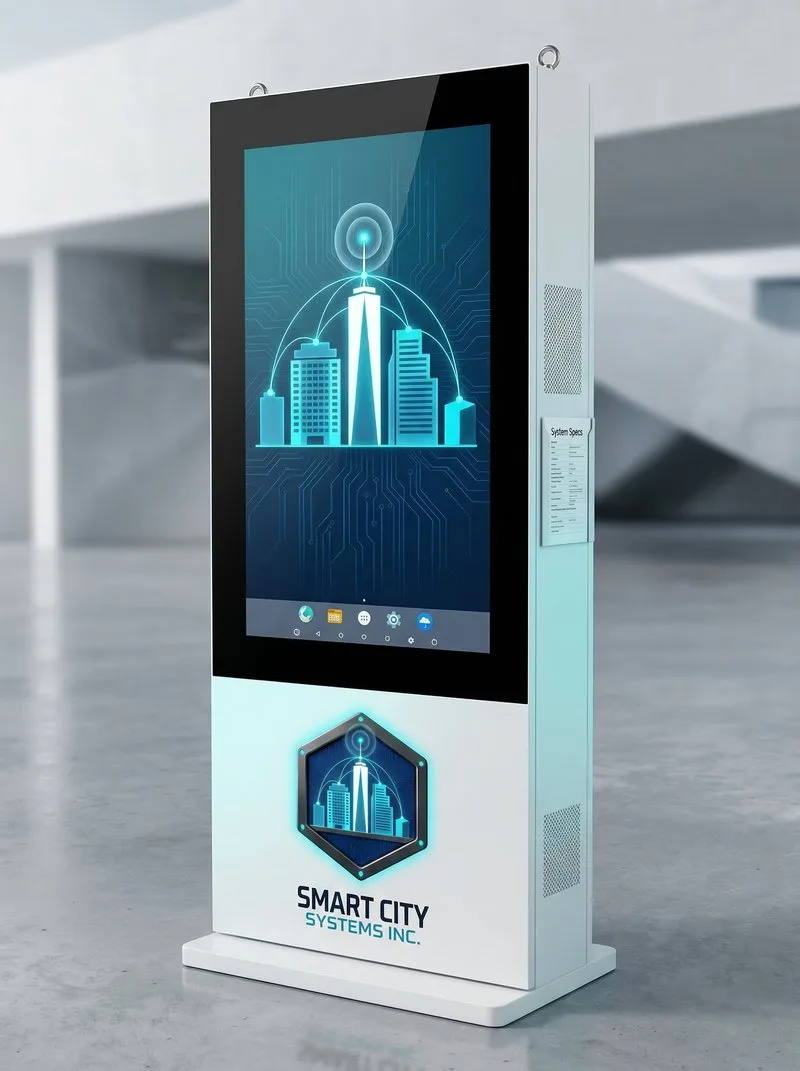

White-label enclosures · city-branded wraps · custom finishes
Product — SCK-55
Indoor Portrait Smart Kiosk
A single 55" 4K UHD portrait touchscreen in a steel interior-grade enclosure for lobbies, concourses, and campuses. Same display engine as the outdoor flagship, same full SmartOS integration.
| Technical Specifications | |
|---|---|
| Display | 55" 4K UHD LCD portrait, capacitive touch |
| Brightness | 2,500 cd/m² · 1300:1 contrast · 178° viewing angle |
| Enclosure | Steel interior-grade, anti-wear finish |
| Glass | 6mm tempered glass |
| Compute | Intel Core i7, custom integrated · full SmartOS platform integration |
| Climate | Centrifugal fans + thermal management |
| Audio | 2 × 10W speakers |
| Compliance | ADA compliant |
| Warranty | 3-year parts + labor |
Additional Configurations
Every Format, One Platform
The full line runs the same SmartOS platform, so a 10.1" countertop unit and a street-scale flagship publish from the same dashboard.
65" Indoor Kiosk
Large-format indoor display in IR touch or capacitive touch configurations for lobbies and halls.
32" Indoor Kiosk
Compact IR touch display for corridors, elevators, and service counters.
14" L-Shape Kiosk
Angled countertop format for check-in, ordering, and concierge stations.
10.1" Countertop Kiosk
Tabletop unit for point-of-service interaction and room-level signage.
Custom Configurations
Sizes, enclosures, and mounting engineered to the site. Every unit ships SmartOS-ready.
Need a spec sheet?
Tell us the site and use case and we'll recommend the right configuration.
Talk to us →
